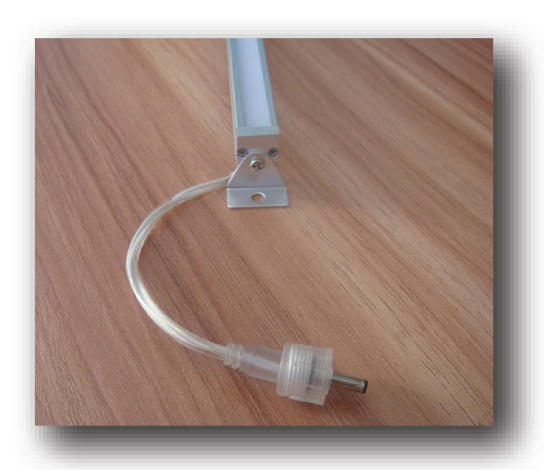

The product adopt 60 pcs super bright SMD LED as luminous body per meter. Silver anodized aluminium profile. The wires come out from both ends with waterproof connector.

Available LED color: Red, Green, Blue, Yellow, Pure White, Warm White, Orange. Specially designed to fulfill customers’ needs and purpose with a more innovative solution for indoor and outdoor decorative projects. This type of strips are used to illuminate indoor and outdoor decorative projects. Also we provide our clients with tailor made solutions for each individual projects.

  • Model and/or type reference: 5050 SMD
  • Radiation angle: 140°
  • Viewing angle: 120°
  • Working mode: Direct current (DC)
  • Average lifespan: 50 000 Hours
  • Communication: DMX512/PWM control system
  • Model/Reference ID: NL-RR3528XX60ND-OA03
  • Typical application: Entertainment lighting, Back lighting, Niche lighting, Cove lighting
  • Support type: Silver anodized aluminium
  • Distance between LEDs: 14 mm
  • Dimension: X x 13.5 x 13 (h) mm (max length 2000 mm)
  • Input voltage: 12V DC / 24V DC
  • Power: 5W per m.
  • IP grade: IP20
  • Connector: 2PIN Waterproof Plug
  • Working temperature: -30 ÷ 55 °C
  • Storage Temperature: -40 ÷ 80 °C
  • Humidity: up to 90%
  • Fixing: Flush Mount, Surface Mount, Blank
  • Minimum corner radius (optional): Adjustable according to needs


Conformity with RoHS Directive 2002/95/EC - Pb. Cd. Hg. Cr+6. PbDSs 6 substances complies to RoHS standard.
