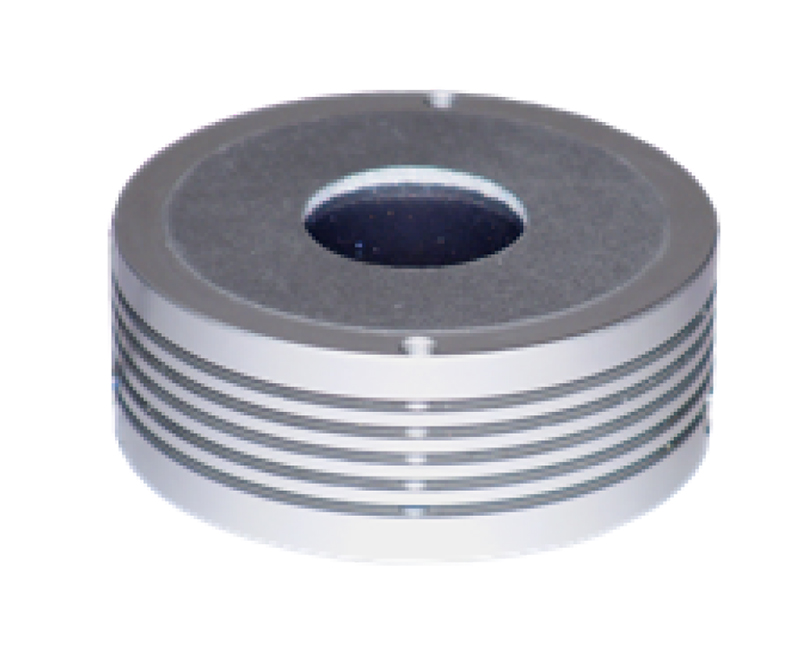

SL-SMD-C9-T4C RGB Spotlight

The lamp is used for focus lighting or periphery lighting. We can use it to create and design the customized applications such as curtain wall, outline the vertical plane of the building, integrated with customized effect or cartoon. Each pixel can be separately given with a unique address, and it allows any pixel to be any color at any time. The lamp could be subject to Ethernet control, DMX512 control or preprogrammed offline control mode.

  • Size: Ø80 mm (diameter) x 40 mm (height)
  • Color: RGB color mixing with more than 16 million colors (DMX512)
  • LED source: Single 3W multichip/SMD
  • Lens: Acrylic + SnowFrost Film
  • Housing Material: Aluminum housing
  • Net weight: 240 g
  • Working mode: Direct current (DC)
  • Lifespan: ≥50 000 Hours
  • Working temperature: -30 ÷ 55 °C
  • Humidity: up to 90%
  • IP grade: IP65
  • Input voltage: DC 12 V / 24 V
  • Power consumption: 3 W
  • Communication: DMX512/PWM control system
  • Viewing angle: 170°

Wiring Diagram

licence

Conformity with RoHS Directive 2002/95/EC - Pb. Cd. Hg. Cr+6. PbDSs 6 substances complies to RoHS standard.
